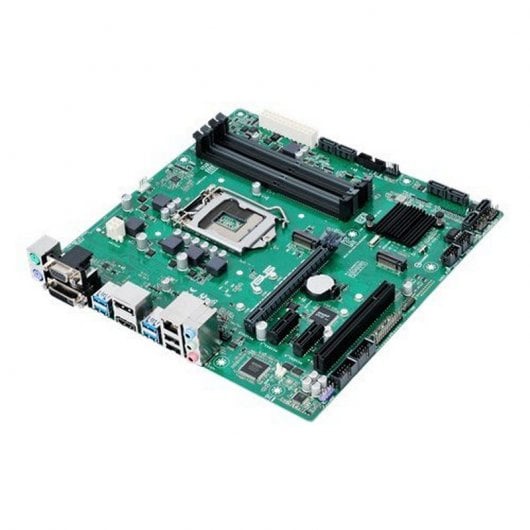

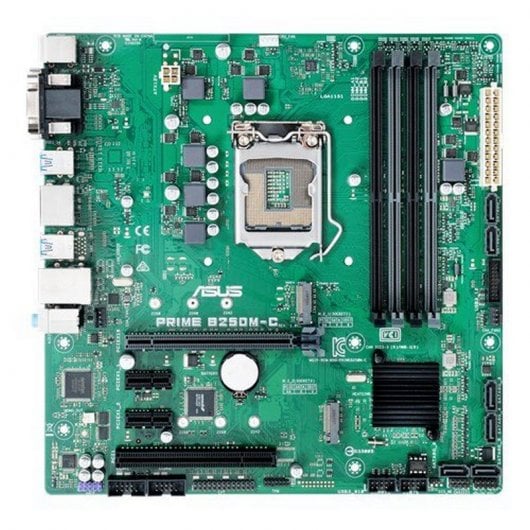

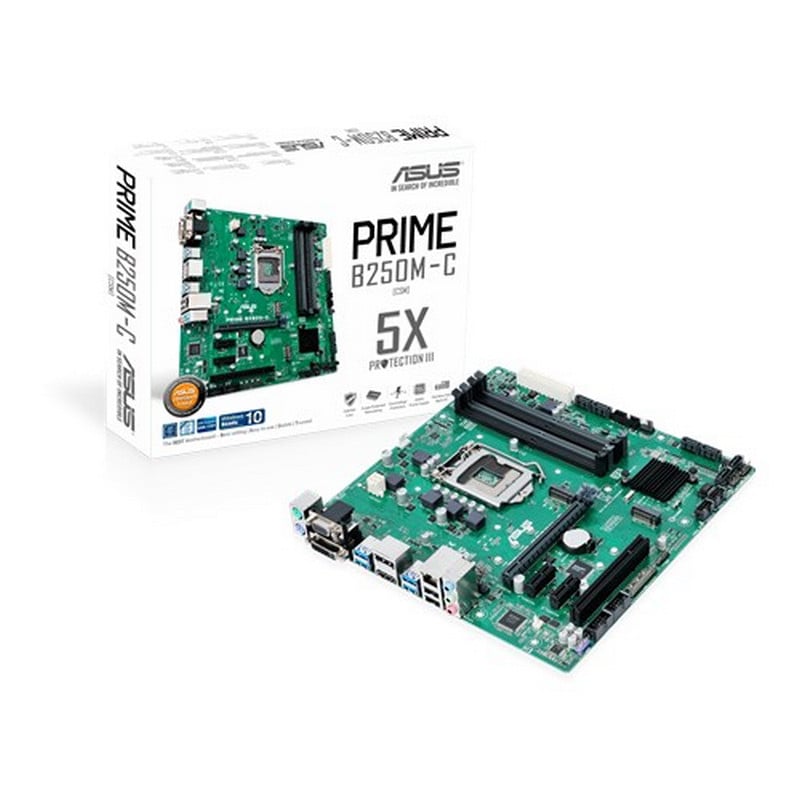

Asus Prime B250M-C
Seja o primeiro a dar a sua opiniãoP/N: 90MB0SQ0-M0EAYM | Cod. Artigo: 111986
46,75€
Disponibilidade do produto Sem data exacta de chegada
Avisem-me quando estiver disponívelQuero subscrever a newsletter e receber as melhores ofertas e notícias! 🔥
Eu li e aceito o Condições Gerais e a Política de Privacidade da PcComponentes.
46,75€
Sobre o produto
Te presentamos la Asus B250M-C., una placa base con socket Intel 1151 y chipset B250
Especificaciones:
| CPU | LGA1151 socket for 6th/7th Generation Intel® Core™ i7/ i5/ i3/Pentium®/Celeron® Processors* |
| Supports 14nm CPU | |
| Supports Intel® Turbo Boost Technology 2.0** | |
| * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. | |
| ** Refer to www.asus.com for Intel® CPU support list | |
| Chipset | Intel® B250 Chipset |
| Memory | 4 x DIMM, max. 64GB, DDR4 2400MHz, non-ECC, un-buffered memory |
| Dual channel memory architecture | |
| Support Intel® Extreme Memory Profile (XMP) | |
| *Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL for details | |
| **Refer to www.asus.com for the Memory QVL(Qualified Vendors Lists). | |
| Expansion Slots | 1 x PCI Express 3.0/2.0 x16 |
| 2 x PCI Express 3.0/2.0 x1 | |
| 1 x PCI | |
| Graphics | Integrated Graphics Processor |
| Multi-VGA output support :DP/HDMI/DVI-D/D-Sub ports | |
| - Supports DisplayPort with max. resolution 4096x2304@60Hz | |
| - Supports HDMI with max. resolution 4096x2160@24Hz / 2560x1600@60Hz | |
| - Supports DVI-D with max. resolution 1920x1200@60Hz | |
| - Supports RGB with max. resolution 1920x1200@60Hz | |
| Support up to three displays simultaneously | |
| Support Intel® InTruTM 3D, Quick Sync Video, Intel® Clear Video HD Technology, and Intel® InsiderTM | |
| Maximum shared memory of 1024 MB | |
| Storage | Intel® B250 Chipset |
| - 6 x SATA 6.0 Gb/s ports | |
| - 2 x M.2 Socket with M Key, type 2242/2260/2280 storage devices(1@ SATA & PCIE mode, 1@PCIe mode with IRST support) | |
| - Ready for Intel® Optane Memory | |
| Intel® Optane Technology is only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. | |
| LAN | Intel® I219V Gigabit LAN Controller |
| Audio | Realtek ALC887 8-channel High Definition Audio CODEC |
| - Supports jack-detection and front panel jack-retasking | |
| USB | 6 x USB 2.0 ports (4 ports at mid-board, 2 ports at back panel) |
| 6 x USB 3.0 ports (2 ports at mid-board, 4ports at back panel) | |
| Dependable Stability | |
| ASUS 5X PROTECTION III | |
| - LANGuard - Surge-protected networking | |
| - Overvoltage Protection - World-class circuit-protecting power design | |
| - Stainless Steel Back I/O - 3X more durable | |
| - ESD Guards - Electrostatic discharge protection | |
| - SafeSlot Core- Fortified PCIe with Solid Soldering | |
| Durability | |
| ASUS Unique Features | UEFI BIOS |
| - Most advanced options with fast response time | |
| Easy PC DIY | |
| Safe motherboard mounting | |
| - Component-free areas to minimize damage risk | |
| Q-Design | |
| - ASUS Q-DIMM | |
| - ASUS Q-Slot | |

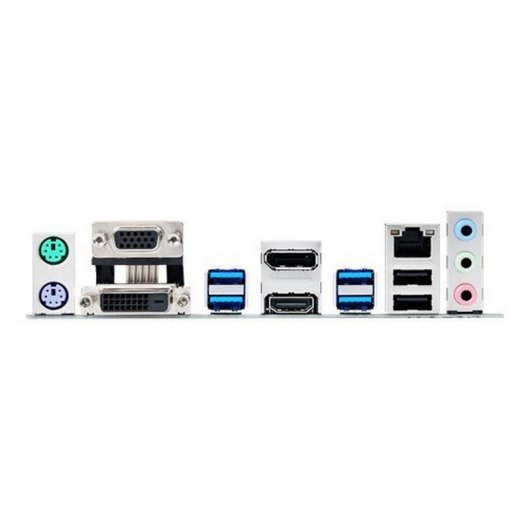

| 1 x PS/2 Keyboard (Purple) | |
| 1 x PS/2 Mouse port (Green) | |
| 1 x DisplayPort | |
| 1 x HDMI | |
| Back I/O Connectors | 1 x DVI-D |
| 1 x D-Sub | |
| 1 x RJ45 port | |
| 2 x USB 2.0/1.1 | |
| 4 x USB 3.0/2.0 | |
| 3 Audio jacks support 8 channel* | |
| * Use a chassis with HD audio module in the front panel to support an 8-channel audio output. | |
| Internal I/O Connectors | 1 x USB 3.0/2.0 connectors support additional 2 USB 3.0 ports |
| 2 x USB 2.0/1.1 connectors support additional 4 USB 2.0 ports | |
| 6 x SATA 6Gb/s connector | |
| 1 x CPU Fan connector | |
| 2 x Chassis Fan connectors | |
| 1 x Front panel audio connector(s) (AAFP) | |
| 1 x System panel connector | |
| 1 x 24-pin ATX Power connector | |
| 1 x 4-pin ATX 12V Power connector | |
| 1 x Speaker connector | |
| 2 x COM port header | |
| 1 x LPT port header | |
| 1 x Chassis Intrusion header | |
| 1 x Clear CMOS header | |
| 1 x MONO-out header* | |
| 1 x 14-1 pin TPM header | |
| *You must use this header with an amplified speaker. | |
| BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.1, Multi-language BIOS, ASUSbackup, LOGO flash, ME update, DMI value edit, BIOS value edit |
| Manageability | WfM 2.0, DMI 3.0, WOL by PME, WOR by PME, PXE |
| Accessories | 2 x Serial ATA 6.0Gb/s cable |
| 1 x Support DVD | |
| 1 x I/O Shield | |
| 2 x M.2 screw package | |
| User´s manual | |
| Support Disc | Drivers |
| ASUS Utilities | |
| ASUS Update | |
| Operating System Support | Windows® 10 (64-bit) |
| Windows® 8.1 (64-bit)* | |
| Windows® 7 (64-bit/32-bit)* | |
| * Windows® 8.1 (64-bit) and Windows® 7 (32/64-bit) are only supported when using 6th Generation Intel® Processors | |
| Form Factor | mATX Form Factor 9.6 x 9.6 inches (24.4 x 24.4 cm) |
