Asus Prime B250M-PLUS
4,8/5
17 opiniõesPerguntas(13)
P/N: 90MB0SI0-M0EAY0 | Cod. Artigo: 111987
Limitado a uma unidade por pedido
82,34€
Disponibilidade do produto Sem data exacta de chegada
Avisem-me quando estiver disponívelQuero subscrever a newsletter e receber as melhores ofertas e notícias! 🔥
Eu li e aceito o Condições Gerais e a Política de Privacidade da PcComponentes.
82,34€
Sobre o produto

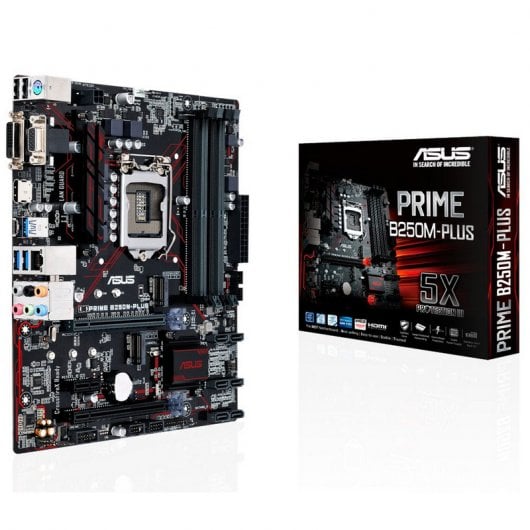

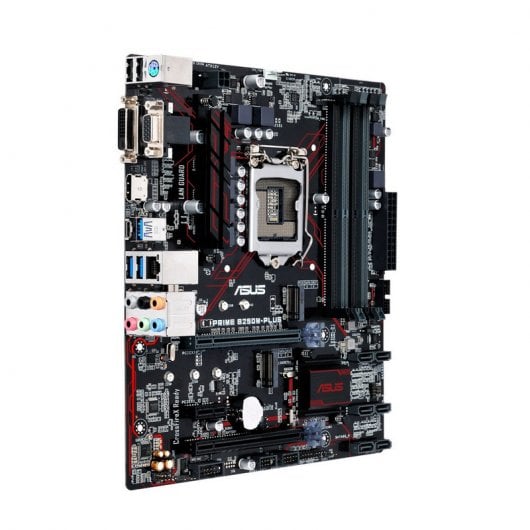

Te presentamos la Asus B250M-PLUS, una placa base con socket Intel 1151 y chipset B250
Especificaciones:
| CPU | LGA1151 socket for 7th/6th Generation Intel® Core™ i7/ i5/ i3?Pentium®?and Celeron® Processors |
| Supports Intel® 14nm CPU | |
| Supports Intel® Turbo Boost Technology 2.0* | |
| * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. | |
| ** Refer to www.asus.com for Intel® CPU support list. | |
| Chipset | Intel® B250 Chipset |
| Memory | 4 x DIMMs, maximum 64 GB, DDR4 2400*/ 2133**MHz, non-ECC, un-buffered memory*** |
| Dual-channel memory architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. | |
| ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz. | |
| ***Refer to www.asus.com for the Memory QVL (Qualified Vendors List). | |
| Expansion Slots | 1 x PCI Express 3.0/2.0 x16 slot (gray,@ x16 mode) |
| 1 x PCI Express 3.0/2.0 x16 slot (black,@ x4 mode) | |
| 1 x PCI Express 3.0/2.0 x1 slot | |
| Multi-GPU Support | Supports AMD® CrossFireX™ Technology |
| VGA | Integrated Graphics Processor- Intel® HD Graphics support |
| Multi-VGA output support: HDMI/DVI-D/ D-Sub ports | |
| - Supports HDMI 1.4b with maximum resolution 4096 x 2160@24Hz/2560 x 1600@60Hz | |
| - Supports DVI-D with maximum resolution of 1920 x 1200@60Hz | |
| - Supports D-Sub with maximum resolution 1920 x 1200@60Hz | |
| Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/Insider™ | |
| Supports up to 3 displays simultaneously | |
| Maximum shared memory of 1024 MB (for iGPU exclusively) | |
| Storage | Intel® B250 Chipset with Intel® Rapid Storage Technology 15 support |
| - 1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA and x2 PCIE mode)* | |
| - 1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (IRST Support,x4 PCIE mode)** | |
| - 6 x SATA 6.0 Gb/s ports (gray) | |
| - Intel® Optane™ Memory Ready *** | |
| * When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used. | |
| ** Only M.2_2 socket can support Intel® Optane™ Memory. | |
| *** Intel® Optane™Technology is only supported when using 7th Generation Intel® processors. Before using Intel® Optane™memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. | |
| LAN | Intel® I219-V Gigabit LAN |
| - Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY) | |
| Audio | Realtek® ALC887 8-channel high definition Audio CODEC |
| - LED-illuminated design?Brighten up your build with the gorgeous illuminated audio trace path. | |
| - Audio Shielding: Ensures precision analog/digital separation and greatly reduces multi-lateral interference | |
| - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals | |
| - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity. | |
| - Supports jack-detection and front panel Jack-Retasking | |
| USB | Intel® B250 Chipset |
| - 1 x 5Gb/s USB Type C port (@back panel),supports 3A power output | |
| - 5 x USB 3.0/2.0 ports (2 ports @mid-board;3 ports @back panel,blue,Type A) | |
| - 6 x USB 2.0/1.1 ports (4 ports @mid-board;2 ports @back panel) | |
| ASUS Special Features | ASUS 5X PROTECTION III |
| - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage | |
| - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges | |
| - ASUS Overvoltage Protection: World-class circuit-protecting power design | |
| - ASUS Stainless Steel Back I/O: 3X corrosion-resistance for greater durability | |
| - ASUS DIGI+ VRM: 6 Phase digital power design | |
| Superb Performance | |
| M.2 onboard | |
| - The latest transfer technologies with up to 32Gb/s data transfer speeds | |
| ASUS Fan Xpert 2+ | |
| - Advanced fan controls for ultimate cooling and quietness | |
| ASUS EPU | |
| - EPU | |
| UEFI BIOS | |
| - Most advanced options with fast response time | |
| Gaming Scenario | |
| Audio Features | |
| - Audio that roars on the battlefield | |
| ASUS Exclusive Features | |
| - ASUS AI Charger | |
| - ASUS AI Suite 3 | |
| EZ DIY | |
| UEFI BIOS EZ Mode | |
| - featuring friendly graphics user interface | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| Q-Design | |
| - ASUS Q-DIMM | |
| - ASUS Q-Slot | |
| ASUS Quiet Thermal Solution | Quiet Thermal Design: |
| - ASUS Fan Xpert 2+ | |
| - Stylish Fanless Design: MOS Heat-sink & PCH Heat-sink solution | |

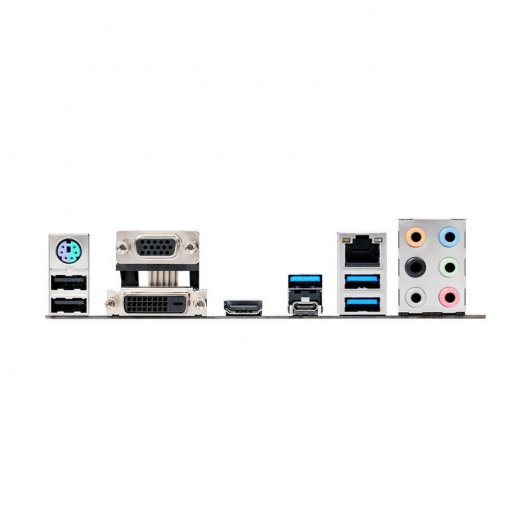

| Back Panel I/O Ports | 1 x PS/2 keyboard/mouse combo port |
| 1 x HDMI port | |
| 1 x DVI-D port | |
| 1 X D-Sub port | |
| 1 x LAN (RJ-45) ports | |
| 1 x 5Gb/s USB Type C port | |
| 3 x USB 3.0/2.0 ports ( blue,Type A) | |
| 2 x USB 2.0/1.1 ports | |
| 6-Jack 8-Channel Audio I/O ports | |
| Internal I/O Connectors | 1 x USB 3.0/2.0 connector support additional 2 USB ports (19-pin) |
| 2 x USB 2.0/1/1 connectors support additional 4 USB ports | |
| 6 x SATA 6.0 Gb/s connectors (gray) | |
| 2 x M.2 Socket 3 (for M Key) | |
| 1 x 4-pin CPU Fan connector for 4-pin (PWM mode) coolers control* | |
| 2 x 4-pin Chassis Fan connectors for both 3-pin (DC mode) and 4-pin (PWM mode) coolers control* | |
| 1 x Front Panel Audio connector(AAFP) | |
| 1 x System panel connector | |
| 1 x S/PDIF out header | |
| 1 x 24-pin EATX Power connector | |
| 1 x 4-pin ATX 12V Power connector | |
| 1 x COM header | |
| * By default, the CPU/Chassis Q-Fan control setting is set to Auto mode, which detects the CPU and chassis fans installed and changes the control mode automatically. | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE |
| Accessories | 2 x Serial ATA 6.0Gb/s cables |
| 1 x ASUS I/O Shield | |
| 2 x M.2 screws | |
| 1 x Support DVD | |
| 1 x User´s manual | |
| Support DVD | Drivers |
| ASUS Utilities | |
| ASUS EZ Update | |
| Anti-virus software (OEM version) | |
| Operating System Support | Windows® 10 (64-bit) |
| Windows® 8.1 (64-bit)* | |
| Windows® 7 (64-bit/32-bit)* | |
| *Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors | |
| Form Factor | uATX form factor: 9.6 in x 8.8 in (24.4cm x 22.4cm) |
Segurança do produto
Opiniões
4.8
94%
Recomendam16 Recomendações- 514
- 43
- 30
- 20
- 10
Deixe a sua opinião
Vai demorar um minuto, vai ajudar as pessoas a decidir.
Opiniões de clientes
Total 17 opiniões
- Mais relevantes
- Mais recentes
- Mais antigas
De outros países
M
ManoloOpinião em destaqueHace 8 añosPlaca muy completa y preparada para el futuro al contar con conectores M2, conector USB-C , etc. El disco de driver que trae son para windows10. Elimina los ventiladores pequeños que a la larga dan problemas. En una situación intermedia de opciones está muy bien equipada de conectores. Muy novedosa ...
Prós
- Conectores M2 y USB-C, además de bastantes USB3.
- Aplicaciones que ayudan a la configuración de la placa.
Contras
- Para instalar win7 hay que cargar en la instalación los drivers USB, lo que hace algo engorroso el proceso, está pensada para win10.
A
AranakoPrós
- El precio, que ofrezca 4 zocalos para lña memoria, diaponer de dos zocalos M2 y el jhecho de que soporta procesadores de ultima generación
Contras
- El manual, para ahorrar costes lo han reducido, remitiendote a un QR para poder leer el resto de la documentacion.
K
Khal HipoPrós
- puerto M.2
Contras
- None
M
MichelCPrós
- trae puerto m2 y 2400 de ram, para el precio que tiene genial
Contras
- por ahora ninguno
J
JoseMl.MPrós
- Permite 7ª gen Intel core
Contras
- Precio algo elevado
D
D4rK1-.Prós
- Todo
Contras
- Nada
R
RubénBPrós
- pequeña
Contras
- demasiado sensible a las criticas
A
AngelPrós
- Perfecta
Contras
- Nada que comentar
O
OriolPrós
- Calidad, precio.
Contras
- Nada
M
Marianopc1976Prós
- Tiene todo lo que necesito
Contras
- Ninguna
L
LuisCPrós
- Calidad
Contras
- Poca posibilidad de ampliación
L
Lvr21Prós
- Buena relacion calidad/precio
Contras
- Ninguna por el momento
A
Adrian GoparPrós
- Completísima.
Contras
- Personalmente me gustan con más puertos PCI Express.
I
IvánPrós
- Es una buena placa base
Contras
- Por poner alguna, tiene unas luces rojas , que cuando apagas el pc, si no lo apagas de la fuente se queda ahí, supongo que desde la bios podrás desactivarlo , pero tampoco es que moleste mucho
D
DorquiumPrós
- Fácil de montar, buen precio y muy buenas prestaciones.
Contras
- Ninguna
Opinião confirmada
A nossa etiqueta de "opinião confirmada" garante que esta avaliação pertence ao mesmo utilizador que efectuou a compra do produto no nosso sítio Web. Verificamos a autenticidade das compras e das respectivas avaliações para garantir que as avaliações assim rotuladas são exactas e fiáveis.
Perguntas e respostas
Total 13 perguntas
- Mais recentes
- Mais antigo
- Menos respostas
D
David Románt
teresamt
teresamJ
JuanCarlosUX
X-TailHace 8 años
¿tendré problemas con el procesador?: Intel Core I7-7700 3.6GHz BOX
¿y la gráfica?: Gigabyte GeForce GTX 1050Ti OC 4GB GDDR5
T
Turonara
anonimoa
anonimoD
DarmArtJ
JesusvJ
JesusvR
RubénG1
19876EOCHace 8 años
Hace falta actualizar BIOS para procesador de 7a??
