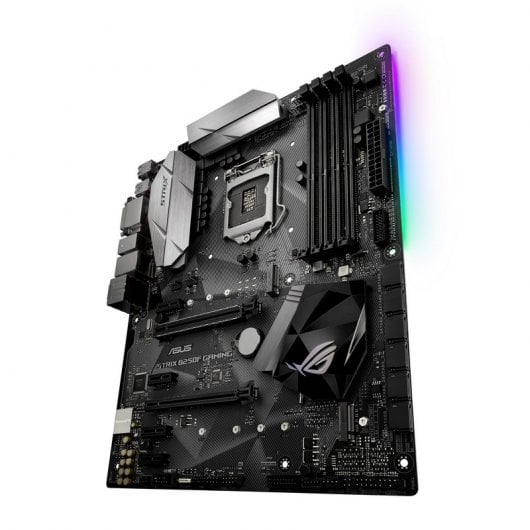

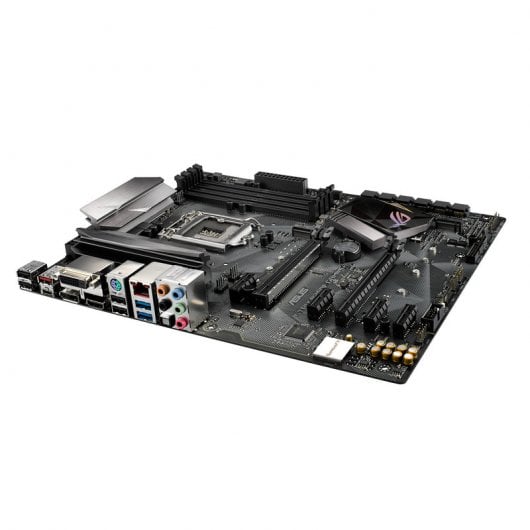

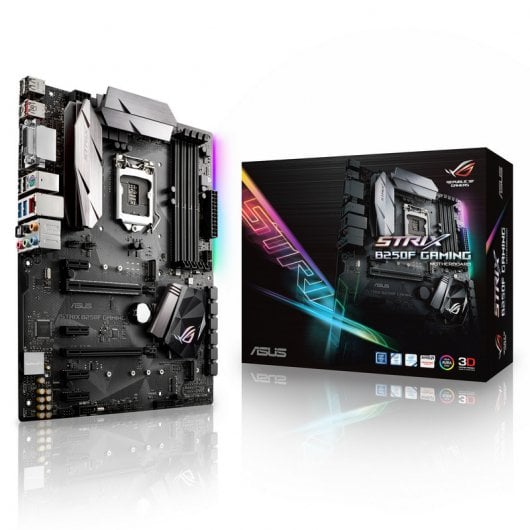

Asus ROG Strix B250F Gaming
P/N: 90MB0TA0-M0EAY0 | Cod. Artigo: 111975
111,72€
Disponibilidade do produto Sem data exacta de chegada
Avisem-me quando estiver disponívelQuero subscrever a newsletter e receber as melhores ofertas e notícias! 🔥
Eu li e aceito o Condições Gerais e a Política de Privacidade da PcComponentes.
111,72€
Sobre o produto
Te presentamos la Asus ROG Strix B250F, una placa base con socket Intel 1151 y chipset B250
Especificaciones:
| CPU | Intel® Socket 1151 for 7th / 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors |
| Supports 14nm CPU | |
| Supports Intel® Turbo Boost Technology 2.0* | |
| * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. | |
| ** Refer to www.asus.com for Intel® CPU support list. | |
| Chipset | Intel® B250 Chipset |
| Memory | 4 x DIMM, max. 64GB DDR4 2400*/2133** MHz |
| Dual channel memory architecture | |
| Supports Intel® Extreme Memory Profile (XMP)*** | |
| * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. | |
| ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz. | |
| *** Refer to www.asus.com for the lastest Memory QVL(Qualified Vendors List) | |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16_1 slot (at x 16 mode) |
| 1 x PCIe 3.0/2.0 x16_2 slot (max. at x 4 mode)* | |
| 4 x PCIe 3.0/2.0 x1 slots | |
| *PCIe x16_2 slot shares bandwidth with PCIe x1_2 and PCIe x1_3 slots. When PCIe x1_2 and PCIe x1_3 slots are occupied, PCIe x16_2 slot runs at x2 mode. | |
| Multi-GPU Support | Supports AMD® 2-Way CrossFireX™ Technology |
| VGA | Integrated Graphics Processor- Intel® HD Graphics support |
| Multi-VGA output support: DisplayPor/ HDMI/ DVI ports | |
| Supports DisplayPort 1.2* with max. resolution 4096 x 2304@60Hz | |
| Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz | |
| Supports DVI-D with max. resolution 1920 x 1200@60Hz | |
| Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/Insider™ | |
| Supports up to 3 displays simultaneously | |
| Maximum shared memory of 1024 MB | |
| Storage | Intel® B250 Chipset with Intel Rapid Storage Technology 15 support |
| - 6 x SATA 6Gb/s ports | |
| - 1 x M.2_1 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA mode)* | |
| - 1 x M.2_2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), supports Intel® Optane Memory** | |
| * The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device. | |
| ** Intel® Optane Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. | |
| LAN | Intel® I219-V Gigabit LAN- Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY) |
| Anti-surge LANGuard | |
| ROG GameFirst Technology | |
| Audio | SupremeFX 8-Channel High Definition Audio CODEC |
| - Supports up to 32-Bit/192kHz playback* | |
| - Impedance sense for front and rear headphone outputs | |
| - High quality 120dB SNR stereo playback output and 113dB SNR recording input | |
| - SupremeFX Shielding Technology | |
| - Dual Headpone Amplifiers | |
| - Jack-detection, Multi-streaming, and Front Panel Jack-retasking | |
| - Optical S/PDIF out port at back panel | |
| Audio Features: | |
| - Sonic Radar III | |
| - Sonic Studio III | |
| *Due to limitations in HDA bandwidth, 32-Bit/102kHz is not supported for 8-channel audio | |
| USB | Intel® B250 Chipset |
| - 6 x USB 3.0 ports (2 ports at back panel [blue], 4 ports at mid-board) | |
| - 6 x USB 2.0 ports (4 ports at back panel, 2 ports at mid-board)* | |
| * 2 x USB 2.0 port at mid-board shares with ROG extension (ROG_EXT) port. | |
| ASMedia® USB 3.1 controller** | |
| - 2 x USB 3.1 ports (1 x Type-A [red] and 1 x Type-C ports at back panel) | |
| ** Supports 3A power output | |
| ROG Exclusive Features | ROG RAMCache II |
| ROG GameFirst IV* | |
| ROG Overwolf | |
| ROG CPU-Z | |
| ROG Clonedrive | |
| *ROG GameFirst IV is only available for Windows® 10/8.1 64-bit | |
| Special Features | Performance Optimization |
| - DIGI + VRM | |
| - GPU Boost | |
| - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control | |
| - AI Suite 3 | |
| Gamer´s Guardian | |
| - SafeSlot | |
| - DIGI+ VRM | |
| - DRAM Overcurrent Protection | |
| - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports | |
| - Highly Durable Components | |
| - Stainless Steel Back I/O | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| ASUS Q-Design | |
| - Q-Shield | |
| - Q-LED (CPU, DRAM, VGA, Boot Device LED) | |
| - Q-Slot | |
| - Q-DIMM | |
| ASUS Exclusive Features | |
| - AURA Lightning Control | |
| - 3D Printing Friendly Design | |
| - AI Charger | |
| Back I/O Ports | 2 x USB 3.1 ports (1 x typeA [red] and 1 x TypeC) |
| 4 x USB 2.0 ports | |
| 1 x DVI port | |
| 1 x HDMI port | |
| 1 x DP port | |
| 1 x PS/2 keyboard/mouse combo port | |
| 2 x USB 3.0 ports [blue] | |
| 1 x Anti-surge LAN (RJ45) port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out | |
| Internal I/O Ports | 2 x USB 3.0 connectors support additional 4 x USB 3.0 ports |
| 1 x USB 2.0 connector support additional 2 x USB 2.0 ports (one connector via ROG_EXT header)1 x USB 2.0 connector support additional 2 x USB 2.0 ports (one connector via ROG_EXT header) | |
| 6 x SATA 6Gb/s connectors | |
| 1 x ROG extension (ROG_EXT) header | |
| 1 x 4-Pin AIO_PUMP fan connector | |
| 1 x 4-Pin CPU fan connector | |
| 1 x 4-Pin CPU_OPT fan connector | |
| 2 x 4-Pin Chassis fan connectors | |
| 1 x 5-Pin Extension fan connector | |
| 1 x 24-pin EATX power connector | |
| 1 x 8-pin EATX 12V power connector | |
| 1 x M.2_2 Socket 3 for M Key, type 2242/2260/2280/22110 storage devices support ( Support PCIE mode only) | |
| 1 x M.2_1 Socket 3 for M Key, type 2242/2260/2280 storage devices support ( Support SATA mode only) | |
| 1 x Front panel audio connector (AAFP) | |
| 1 x COM connector | |
| 1 x RGB Header | |
| 1 x TPM connector | |
| 1 x System panel connector | |
| 1 x Thermal sensor connector | |
| 1 x Clear CMOS jumper (2-pin) | |
| Accessories | User guide |
| Support DVD | |
| I/O Shield | |
| 4 x SATA 6Gb/s cables | |
| 1 x RGB LED extension cable | |
| 1 x ROG cable label | |
| 1 x Strix series sticker | |
| 1 x 3D Printing Mount | |
| 1 x M.2 Screw Package | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information. |
| Manageability | WfM2.0, DMI2.0, WOL by PME, PXE |
| Support DVD | Drivers |
| ASUS Utilities | |
| EZ Update | |
| Anti-virus software (OEM version) | |
| Operating System Support | Windows® 10 64-bit |
| Windows® 8.1 64-bit* | |
| Windows® 7* | |
| *Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors. | |
| Form Factor | ATX Form Factor, 12” x 9.6” (30.5cm x 24.4cm) |
Segurança do produto
Opiniões
4.9
80%
Recomendam4 Recomendações- 55
- 40
- 30
- 20
- 10
Deixe a sua opinião
Vai demorar um minuto, vai ajudar as pessoas a decidir.
Opiniões de clientes
Total 5 opiniões
- Mais relevantes
- Mais recentes
- Mais antigas
De outros países
D
DaniOpinião em destaqueHace 8 añosUn "pepino" de placa base. Estupendo diseño y con unas características muy buenas para su precio. Aun no la tengo montada, porque mi procesador es 1155, pero estoy seguro de que estaré muy contento con esta placa base.
Prós
- Estupendo diseño y relación calidad-precio
Contras
- Pocos puertos USB 3.0
B
Brian1117Prós
- - Diseño
- - Calidad de los componentes
- - Los leds le dan un toque espectacular
- - La gran disipación de calor que posee.
Contras
- Rotundamente ninguno
L
LorenzoTPrós
- Me mola mucho su juego de neones
Contras
- Ninguna
A
AlejandrogPrós
- Muy facil montaje
Contras
- Ninguno
H
HachimanPrós
- Ninguno por ahora
Contras
- Led guapisimos, estética bonita y va perfecto.
Opinião confirmada
A nossa etiqueta de "opinião confirmada" garante que esta avaliação pertence ao mesmo utilizador que efectuou a compra do produto no nosso sítio Web. Verificamos a autenticidade das compras e das respectivas avaliações para garantir que as avaliações assim rotuladas são exactas e fiáveis.
Perguntas e respostas
Total 8 perguntas
- Mais recentes
- Mais antigo
- Menos respostas
Q
Qi hui zhengHace 7 años
Hola a todos queria saber si esta placa funciona con un i5 8400?
P
Pccomponentes
hace 2 años
Melhor resposta
Qi hui zheng No, para eso necesitas una B360, o una Z370.
D
David PachecoHace 8 años
¿Está placa base puede hacer OC ?
P
Pccomponentes
hace 2 años
Melhor resposta
David Pacheco No, el chipset B250 no lo permite. Para hacer overclock necesitarás una placa base con socket Z170, Z270 o Z370 para Intel.
A
ArthurMHace 8 años
El frontal ya viene en el paquete o tengo que recoger en algun otro sitio?
M
MikelC
hace 2 años
Melhor resposta
ArthurM El frontal se te entrega aparte, en una caja rog roja, (pccom es como si te vendiese el frontal a 0 euros)
D
DanXerHace 8 años
hola tengo una shapire 480 , me tropezaría con el logo de asus a la derecha del conector
P
Pccomponentes
hace 2 años
Melhor resposta
DanXer Podrás instalar la gráfica sin ningún tipo de problema.
S
SergioperjioHace 8 años
¿Qué se incluye con la placa base?
P
Pccomponentes
hace 2 años
Melhor resposta
Sergioperjio Hola, incluye una chapa trasera, kit de instalación para procesadores intel, tornillo para conectar disco M.2., drivers y un set de cables SATA.
D
DaniHace 8 años
¿La placa base tiene para conectar puertos 3.0 de serie en la torre? Gracias.
P
Pccomponentes
hace 2 años
Melhor resposta
Dani Si, si que dispone de conector para activar los de la torre.
J
JavierHace 8 años
viene ya de fábrica con compatibilidad con kaby lake o hay que actualizar la bios?
P
Pccomponentes
hace 2 años
Melhor resposta
Javier Hola, las placas con el nuevo chipset B250, pueden venir preparadas sin necesidad de actualizar la BIOS previamente, aunque el fabricante no especifica la versión instalada de fábrica.
M
MarioHace 8 años
¿Esta placa base serviría con un i5 de 4ª generación? ¿O la sexta y séptima generación es para todos los procesadores?
P
Pccomponentes
hace 2 años
Melhor resposta
Mario El fabricante solo especifica compatibilidad con procesadores de 6ª y 7ª generación, por lo que, no te puedo asegurar la compatibilidad de uno de 4ª generación.
