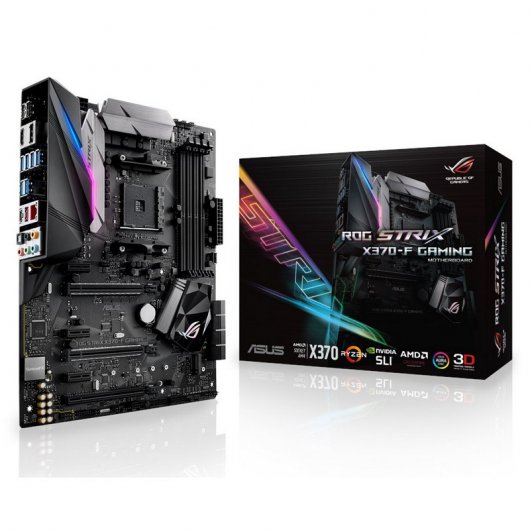

Asus ROG Strix X370-F Gaming

Te presentamos la Asus ROG Strix X350-F Gaming, una placa base con socket AMD AM4 y chipset X370.

Especificaciones:

• CPU
  • AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors
  • Supports AM4 Socket 14 nm CPU
  • Supports CPU up to 8 cores
  • * Refer to www.asus.com for CPU support list
• Chipset
  • AMD X370
• Memory
  • AMD Ryzen™ Processors
  • 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *
  • AMD 7th Generation A-series/Athlon™ Processors
  • 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *
  • Dual Channel Memory Architecture
  • * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Multi-GPU Support
  • Supports NVIDIA® 2-Way SLI™ Technology
  • Supports AMD 3-Way CrossFireX™ Technology
• Expansion Slots
  • AMD Ryzen™ Processors
  • 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
  • AMD 7th Generation A-series/Athlon™ Processors
  • 1 x PCIe 3.0/2.0 x16 (x8 mode)
  • AMD X370 chipset
  • 1 x PCIe 2.0 x16 (max at x4 mode) *1
  • 3 x PCIe 2.0 x1
• Storage
  • AMD Ryzen™ Processors :
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • AMD 7th Generation A-series/Athlon™ Processors :
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
  • AMD X370 chipset :
  • 8 x SATA 6Gb/s port(s),
  • Support Raid 0, 1, 10
• LAN
  • Intel® I211-AT, 1 x Gigabit LAN Controller(s)
  • Anti-surge LANGuard
  • ROG GameFirst Technology
• Audio
  • ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
  • - Dual Headphone Amplifiers
  • - Impedance sense for front and rear headphone outputs
  • - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  • - SupremeFX Shielding Technology
  • - Supports up to 32-Bit/192kHz playback *2
  • Audio Feature :
  • - Optical S/PDIF out port(s) at back panel
  • - Sonic Radar III
  • - Sonic Studio III
• USB Ports
  • AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
  • 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
  • AMD X370 chipset :
  • 1 x USB 3.1 Gen 2 front panel connector port(s)
  • AMD X370 chipset :
  • 6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board)
  • AMD X370 chipset :
  • 4 x USB 2.0 port(s) (2 at back panel, black, 2 at mid-board)
  • ASMedia® USB 3.1 Gen 2 controller :
• 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A + USB Type-CTM)
• ROG Exclusive Features
  • ROG RAMCache II
  • ROG CPU-Z
  • ROG CloneDrive
  • Overwolf
  • GameFirst IV
• Special Features
  • 5-Way Optimization by Dual Intelligent Processors 5
  • - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
  • TPU
  • - Auto Tuning, TurboV, GPU Boost
  • - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
  • Gamer´s Guardian:
  • - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
  • - DRAM Overcurrent Protection
  • - Stainless Steel Back I/O
  • - Highly Durable Components
  • - DIGI+ VRM
  • - SafeSlot
  • ASUS EPU :
  • - EPU
  • AURA :
  • - Aura Lighting Control
  • ASUS Exclusive Features :
  • - AI Suite 3
  • - Ai Charger
  • ASUS EZ DIY :
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • ASUS Q-Design :
  • - ASUS Q-Shield
  • - ASUS Q-LED (CPU, DRAM, Boot Device LED)
  • - ASUS Q-Slot
  • - ASUS Q-DIMM
  • Gaming Aesthetics :
  • - 3D printing friendly
  • - AURA-RGB Lighting
  • Digi+VRM

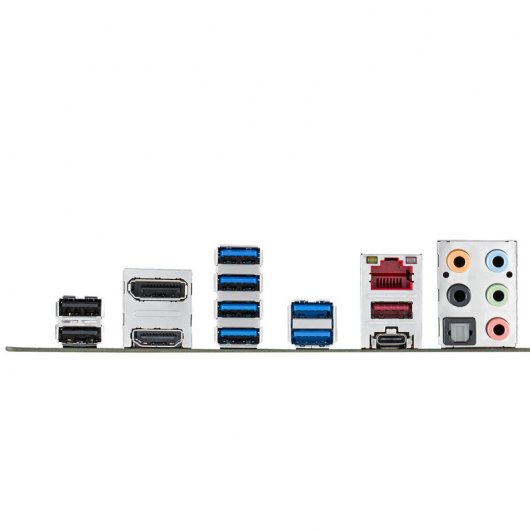

• Back I/O Ports
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.1 Gen 2 Type-A + USB Type-CTM
  • 6 x USB 3.1 Gen 1
  • 2 x USB 2.0
  • 1 x Optical S/PDIF out
  • 5 x Audio jack(s)
• Internal I/O Ports
  • 2 x RGB Header(s)
  • 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
  • 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x TPM connector(s)
  • 8 x SATA 6Gb/s connector(s)
  • 1 x CPU Fan connector(s)
  • 1 x CPU OPT Fan connector(s)
  • 3 x Chassis Fan connector(s)
  • 1 x AIO_PUMP connector
  • 1 x W_PUMP+ connector
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Thermal sensor connector(s)
  • 1 x Clear CMOS jumper(s)
  • 1 x System panel connector
  • 1 x USB 3.1 Gen 2 front panel connector
  • Accessories
  • User´s manual
  • I/O Shield
  • 4 x SATA 6Gb/s cable(s)
  • 1 x M.2 Screw Package
  • 1 x Supporting DVD
  • 1 x SLI HB BRIDGE(2-WAY-M)
  • 1 x ROG Strix stickers
  • 1 x 10-in-1 ROG cable label
  • 1 x Cable ties pack(s)
  • 1 x Extension Cable for RGB strips (80 cm)
  • 1 x 3D printing mount package
• BIOS
  • 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0 ACPI 6.1, Multi-language BIOS,ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
• WfM 2.0, DMI 3.0, WOL by PME, PXE
• Support Disc
  • Drivers
  • ASUS Utilities
  • Anti-virus software (OEM version)
• Operating System
  • Windows® 10 64-bit
• Form Factor
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Note
  • *1 PCIEX16_3 Socket shares bandwidth witch PCIEX1_2 and PCIEX1_3
  • *2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
  • *3 ROG GameFirst IV is only available for Windows® 10 64-bit.
